Assalamualaikum wr. wb. ikhwan wa ukhti...
Disini saya akan berbagi ilmu mengenai backup and restore configuration di mikrotik, lanjut simak postingan dibawah ini ya...
Here I will share information about backup and restore configuration in mikrotik, next see post below ya...
1. Tujuan
1. The Purpose
- Kamu dapat mengetahui cara backup konfigurasi
- You know how about backup configuration
- Kamu dapat mengetahui cara restore konfigurasi
- You know how about restore configuration
2. Bahan - Bahan
2. Materials
- 1 unit PC/Laptop
- 1 unit PC/Laptop
- RouterBoard
- RouterBoard
- Kabel UTP
- Cable UTP
- Winbox
- Winbox
3. Langkah-langkah
3. Steps
Saya akan membackup dan merestore hasil konfigurasi saya. Disini saya sudah menghubungkan routeboard ke internet.
I will backup and restore the result my configuration. Here i'm has been connecting routerboard to internet.
IP yang saya gunakan pada Laptop
IP that I use on Laptop
Backup by .backup
Buka Winbox, login menggunakan MAC Address
Open winbox, login use MAC Address
- Via CLI
Ketikkan perintah
Typing the command
system backup save name=Mikrotik_27_Feb_2015
Untuk melihat file backup, ketikkan perintah
To see file backup, typing the command
file pr
- Via GUI
Klik Files
Click Files
Untuk melakukan backup, klik Backup
To do backup, click Backup
Nama dan password dikosongkan saja, kemudian klik Backup
Name and password emptied, and then click Backup
Hasil file backup yang telah dibuat
The result file backup has been made
Copy file backup ke harddisk anda
Copy file backup to your harddisk
Paste kan di harddisk anda
Paste in your harddisk
Untuk mereset konfigurasi, klik System pilih Reset Configuration
To reset configuration, klik System select Reset Configuration
Ceklis pada "No Default Configuration" agar setelah di reset sudah tidak ada konfigurasi lagi
Checklist on "No Default Configuration" after that reset has been nothing configuration again
Restore file backup by .backup
Buka lagi winbox, login menggunakan MAC Address
Open again winbox, login use MAC Address
Klik IP pilih Addresses
Click IP select Addresses
Buat IP Address agar bisa login menggunakan IP Address
Make IP Address to login use IP Address
IP Address sudah dibuat
IP Address has been made
Klik System pilih Reboot
Click System select Reboot
Buka lagi winbox, kemudian login menggunakan IP Address
Open again winbox, and then login use IP Address
Klik Files
Click Files
Hapus terlebih dahulu file backup yang sudah dibuat tadi, dengan mengikuti gambar dibawah ini
Remove file backup has been made, with follow picture in below
Copy file backup yang tadi telah di paste kan di harddisk
Copy file backup has been paste on harddisk
Klik icon pada kotak nomor 1 untuk paste file backup yang telah di copy
Click icon on box number 1 to paste file backup has been copy
Setelah di paste, klik Restore untuk mengembalikan konfigurasi yang sebelumnya sudah di backup
After paste, click Restore to return the previous configuration has been backup
Klik restore
Click restore
Coba ping google, apakah terkoneksi dengan internet atau tidak, karena konfigurasi saya sebelumnya adalah mengkoneksikan router ke internet
Try ping google, whether connected to network or not, because the previous my configuration is connect router to network
Backup by .backup using password
Klik Files
Click Files
Klik Backup, kemudian masukkan nama dan password, setelah itu klik backup
Click backup, then enter name and password, after that click backup
Hasil file backup yang telah dibuat
The result file backup has been made
Copy file backup ke harddisk anda, klik icon pada kotak nomor 2
Copy file backup to your hardisk, click icon on box number 2
Paste kan di harddisk anda
Paste on your harddisk
Untuk mereset konfigurasi, klik Sytem pilih Reset Configuration
To reset configuration, click System select Reset Configuration
Ceklis pada No Default Configuration agar setelah di reset sudah tidak ada konfigurasi lagi
Checklist on No Default Configuration after that reset has been nothing configuration again
Restore file backup by .backup using password
Buka lagi winbox, login menggunakan MAC Address
Open again winbox, and then login use MAC Address
Klik IP pilih Addresses
Click IP select Addresses
Buat IP Address agar bisa login menggunakan IP Address
Make IP Address to login use IP Address
IP Address telah dibuat
IP Address has been made
Klik System pilih Reboot
Click System select Reboot
Buka lagi winbox, login menggunakan IP Address
Open again winbox, and then login use IP Address
Klik Files
Click Files
Hapus file backup yang tadi sudah dibuat, klik icon pada kotak nomor 2
Remove file backup has been made, click icon on box number 2
Copy file backup yang tadi sudah di paste ke harddisk
Copy file backup has been paste on harddisk
Klik icon pada kotak nomor 1 untuk paste file backup yang telah di copy
Click icon on box number 1 to paste file backup has been copy
Klik restore
Click restore
Masukkan password yang tadi sudah dibuat pada saat backup, kemudian klik Restore
Enter password has been made when backup, and then click restore
Backup by script (.rsc)
Buka winbox, login menggunakan IP Address
Open winbox, login use IP Address
Klik New Terminal
Click New Terminal
Untuk membackup menggunakan CLI, ketikkan perintah
To backup via CLI, typing the command
export file=backup_all_configuration
Untuk melihat file hasil backup, ketikkan perintah
To see the result file backup, typing the command
file pr
Untuk melihat secara GUI, klik Files
To see via GUI, click Files
File backup yang sudah dibuat lewat terminal
File backup has been made via terminal
Copy file backup ke harddisk anda, klik icon pada kotak nomor 2
Copy file backup to your harddisk, click icon on box number 2
Paste kan ke harddisk anda
Paste on your harddisk
Untuk mereset konfigurasi, klik System pilih Reset Configuration
To reset configuration, click System select Reset Configuration
Ceklis pada "No Default Configuration" agar setelah di reset sudah tidak ada konfigurasi lagi
Checklist on "No Default Configuration" after reset has been nothing configuration again
Restore file backup by script (.src)
Buka winbox lagi, login menggunakan MAC Address
Open winbox again, login use MAC Address
Hapus file backup yang tadi sudah dibuat, klik icon pada kotak nomor 2
Remove file backup has been made, click icon on box number 2
Kelebihan dari backup menggunakan script adalah kita dapat mengubah konfigurasi melalui notepad dengan cara drag and drop
Strength from backup use script is we can change configuration via notepad by drag and drop
Disini saya akan mengubah IP Address, sebelumnya IP Addressnya 11.11.11.1/24 menjadi 12.12.12.1/24 kemudian save konfigurasi tersebut
Here I will change IP Address, IP Address before 11.11.11.1/24 to be 12.12.12.1/24 and then save the configuration
Copy file yang tadi sudah di edit
Copy file has been edited
Klik icon pada kotak nomor 1 untuk paste file backup yang telah di copy
Click icon on box number 1 to paste file backup has been copy
Klik New Terminal
Click New Terminal
Untuk restore lewat CLI, ketikkan perintah
To restore via CLI, typing the command
import file name=backup_all_configuration.rsc
Karena tadi saya mengedit IP Address, maka lihat IP Address, ketikkan perintah
Because I had edit IP Address, then see IP Address, typing the command
ip address pr
Klik System pilih Reboot
Click System select Reboot
Ubah IP di PC/Laptop anda agar satu network dengan IP Mikrotik
Change IP on your PC/Laptop so that the network with IP Mikrotik

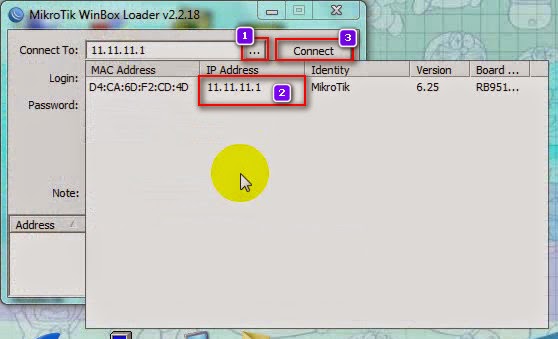

Buka winbox, login menggunakan IP Address
Open winbox, login use IP Address
Bisa login menggunakan IP Address
Can login use IP Address
You can see below :
TERIMAKASIH^^
THANKYOU^^
SEMOGA BERMANFAAT^^
HOPE IT IS USEFUL^^
Wassalamualaikum wr. wb. ikhwan wa ukhti...
